利用深度学习合成天线阵列辐射图

该示例演示了如何设计和训练一个卷积神经网络，该神经网络计算天线阵元的权重，以形成所需的辐射方向图。

导言

网格单元的权重允许您以与给定的辐射模式相对应的方式形成辐射模式。

深度学习方法近年来在计算机视觉和自然语言处理方面表现出优异的效果。尽管神经网络训练需要时间并且是离线进行的，但在训练之后，网络能够立即产生结果。这使得能够实时合成图案。

导入库

 !pip install -r /user/Demo_public/data_analysis/directional_pattern/requirements.txt

在此示例中，将执行探索性数据分析，包括对集合结构的初始检查，研究特征和目标变量的分布，识别遗漏，异常值和重复，以及分析变量之间的相关性。在下一阶段，将构建和训练回归模型，以便预测目标变量并使用适当的指标评估其工作质量。此外，将对特征的重要性进行分析，这将确定哪些特征对模型的预测贡献最大，并且可以被认为对所研究的任务最重要。

import os, glob, time, datetime, copy
import numpy as np
import cvxpy as cp
import matplotlib.pyplot as plt

import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils.data import Dataset, DataLoader, random_split
from torchvision import transforms, models
from PIL import Image

定义辅助函数

可视化

DB_FLOOR = -80
def plot_pattern_cut(az_grid, el_grid, pat_db, el0=0.0, title=None):
    idx = int(np.argmin(np.abs(el_grid - el0)))
    plt.figure(figsize=(6,4.2))
    plt.plot(az_grid, pat_db[idx, :])
    plt.xlabel('Азимут'); plt.ylabel('Относительный уровень, дБ')
    plt.title(title); plt.grid(True); plt.tight_layout(); plt.show()

def plot_pattern_2d(az_grid, el_grid, pat_db, db_floor=-60, title='Beam Pattern'):
    pat_db = np.clip(pat_db, db_floor, 0)
    AZ, EL = np.meshgrid(az_grid, el_grid)
    plt.figure(figsize=(6.6,5.2))
    cf = plt.contourf(AZ, EL, pat_db, levels=40)
    plt.contour(AZ, EL, pat_db, levels=np.arange(db_floor, 1, 5), colors='k', linewidths=0.4, alpha=0.4)
    plt.colorbar(cf, label='dB')
    plt.xlabel('Azimuth (deg)'); plt.ylabel('Elevation (deg)')
    plt.title(title); plt.tight_layout(); plt.show()

def plot_aperture(pos, r):
    y, z = pos[:,1], pos[:,2]
    plt.figure(figsize=(5,5))
    plt.scatter(y, z, s=80)
    circ = plt.Circle((0,0), r, fill=False, ls='--', lw=1.5)
    plt.gca().add_artist(circ)
    plt.gca().set_aspect('equal', 'box')
    plt.xlabel('y (m)'); plt.ylabel('z (m)')
    plt.grid(True, alpha=0.3)
    plt.tight_layout(); plt.show()

权重的合成

def get_circular_planar_positions(r=3.0, delta=0.5, wavelength=1.0):
    ys = np.arange(-r, r + 1e-9, delta)
    zs = np.arange(-r, r + 1e-9, delta)
    Y, Z = np.meshgrid(ys, zs, indexing='xy')
    mask = (Y**2 + Z**2) <= r**2 + 1e-9
    y = Y[mask].ravel()
    z = Z[mask].ravel()
    x = np.zeros_like(y)
    pos = np.c_[x, y, z] / wavelength
    return pos.astype(float), pos.shape[0]

def dir_unit_vector(az_deg, el_deg):
    az = np.deg2rad(az_deg); el = np.deg2rad(el_deg)
    c = np.cos(el)
    return np.array([c*np.cos(az), c*np.sin(az), np.sin(el)])

def steering_vector(pos, az_deg, el_deg):
    u = dir_unit_vector(az_deg, el_deg)
    phase = 2*np.pi * (pos @ u)
    return np.exp(1j * phase)

def steering_matrix(pos, az_list, el_list):
    A = []
    for az, el in zip(az_list, el_list):
        A.append(steering_vector(pos, az, el).conj())
    return np.vstack(A) if A else np.zeros((0, pos.shape[0]), dtype=complex)

def array_response_fast(pos, w, az_grid, el_grid):
    az = np.deg2rad(np.asarray(az_grid))
    el = np.deg2rad(np.asarray(el_grid))
    ca, sa = np.cos(az), np.sin(az)
    ce, se = np.cos(el), np.sin(el)
    ux = np.outer(ce, ca)
    uy = np.outer(ce, sa)
    uz = np.outer(se, np.ones_like(az))
    phase = 2*np.pi * (pos[:,0,None,None]*ux + pos[:,1,None,None]*uy + pos[:,2,None,None]*uz)
    A = np.exp(1j*phase)
    val = np.tensordot(np.conj(A), w, axes=(0,0))
    pat = 20*np.log10(np.maximum(np.abs(val), 1e-12))
    pat -= np.max(pat)
    return pat

def make_side_region(az_span, el_span, step=0.5, exclude=set()):
    azs = np.arange(az_span[0], az_span[1] + 1e-9, step)
    els = np.arange(el_span[0], el_span[1] + 1e-9, step)
    return [(az, el) for az in azs for el in els if (az, el) not in exclude]

def db2lin_amp(db): return 10**(db/20.0)

def synthesize_mask_l2(pos, main_dir, null_dirs=None, null_db=None,
                       side_dirs=None, side_db=None):
    a_d = steering_vector(pos, *main_dir).conj()
    A_i = steering_matrix(pos, *(zip(*null_dirs)) if null_dirs else ([], []))
    A_s = steering_matrix(pos, *(zip(*side_dirs)) if side_dirs else ([], []))
    N = pos.shape[0]
    w = cp.Variable(N, complex=True)
    cons = [a_d @ w == 1]
    if A_i.size and null_db is not None:
        r_i = np.atleast_1d(null_db)
        r_i = np.full(A_i.shape[0], db2lin_amp(r_i[0])) if r_i.size==1 else db2lin_amp(r_i)
        cons += [cp.abs(A_i @ w) <= r_i]
    if A_s.size and side_db is not None:
        r_s = np.atleast_1d(side_db)
        r_s = np.full(A_s.shape[0], db2lin_amp(r_s[0])) if r_s.size==1 else db2lin_amp(r_s)
        cons += [cp.abs(A_s @ w) <= r_s]
    prob = cp.Problem(cp.Minimize(cp.norm(w, 2)), cons)
    prob.solve(verbose=False)
    if w.value is None: raise RuntimeError("Оптимизация не сошлась")
    return np.asarray(w.value).ravel()

def normalize_weights(w, ref_idx=0):
    w = w / (np.linalg.norm(w) + 1e-12)
    w *= np.exp(-1j*np.angle(w[ref_idx]))
    return w

def align_scale_phase(w_hat, w_true):

    alpha = (np.vdot(w_hat, w_true) / (np.vdot(w_hat, w_hat) + 1e-12))
    return alpha * w_hat


def db_to_uint8(pat_db, db_floor=DB_FLOOR):
    pat = np.clip(pat_db, db_floor, 0.0)
    img01 = (pat - db_floor) / (0.0 - db_floor)
    return (img01 * 255.0).astype(np.uint8)

让我们设置变量

LR              = 1e-4
WEIGHT_DECAY    = 1e-2
SEED            = 123
SAVE_DIR        = "./beam_ds_simple"
NUM_SAMPLES     = 1500
IMAGE_SIZE      = 224
DB_FLOOR        = -80.0
BATCH_SIZE      = 32
EPOCHS          = 20
MODEL_PATH      = "beamformer_resnet18.pth"

RADIUS  = 3.0
DELTA   = 0.5
LAMBDA  = 1.0

网格

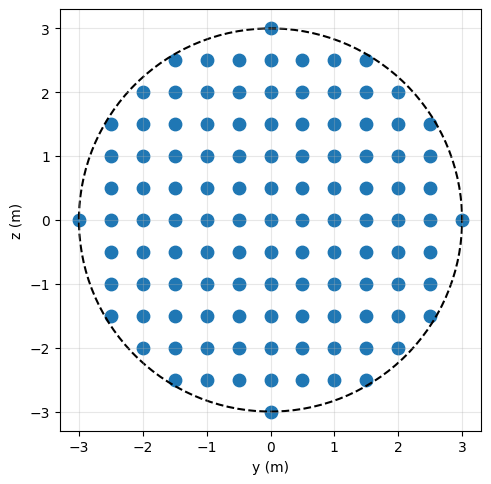

考虑半径为3米的圆形扁平天线阵列。元素以0.5米的增量排列在矩形网格上。
要生成坐标，请考虑函数 get_circular_planar_positions

r, delta, lamb = RADIUS, DELTA, LAMBDA
pos, N = get_circular_planar_positions(r, delta, lamb)
plot_aperture(pos, r=r)

使用优化的模板合成

假设您要创建一个方向图案，其中主瓣定向为方位角，并且位置的角度为0°。模板必须满足以下条件::

最大限度地集中注意力;
在主瓣以下30dB处抑制干扰;
确保旁瓣的水平在方位角或仰角不高于相对于主瓣的-17dB的-20°至20°范围内。

main_dir = (0.0, 0.0)
interfs = [(12.0, 10.0), (13.0, 10.0)]
interfs_db = [-30.0, -30.0]
az_bands = [(-20, -10), (10, 20)]
el_bands = [(-20, -10), (10, 20)]

exclude = set(interfs)
side_pts = []
for az_span in az_bands:
    for el_span in el_bands:
        side_pts += make_side_region(az_span, el_span, step=0.5, exclude=exclude)

合成晶格权重

w1 = synthesize_mask_l2(
    pos, main_dir,
    null_dirs=interfs, null_db=interfs_db,
    side_dirs=side_pts, side_db=-17.0
)

我们得到格子图案

az_plot = np.arange(-90, 90.001, 0.25)
el_plot = np.arange(-90, 90.001, 0.25)

pat1 = array_response_fast(pos, w1, az_plot, el_plot)

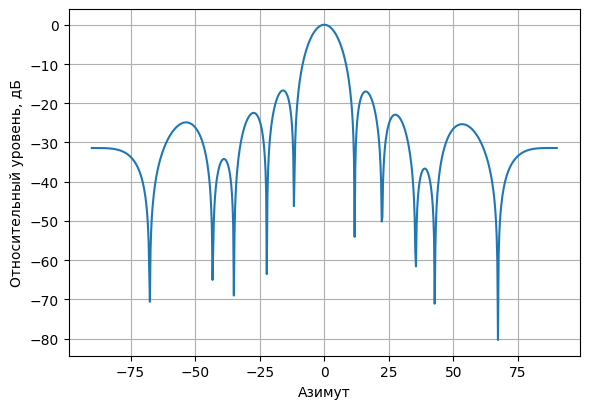

plot_pattern_cut(az_plot, el_plot, pat1, el0=0.0)

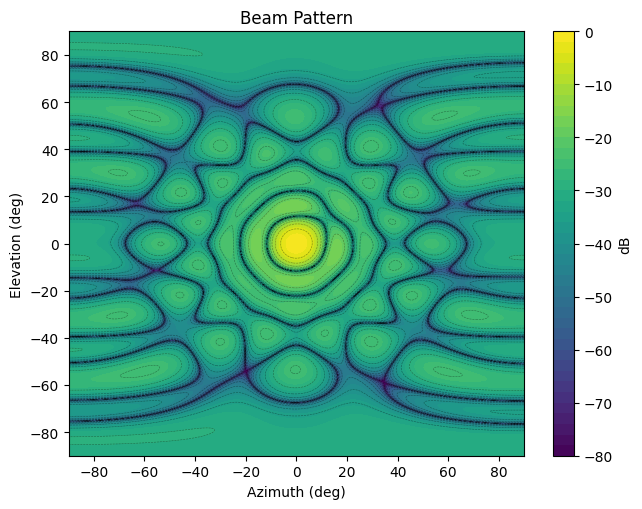

plot_pattern_2d(az_plot, el_plot, pat1, db_floor=-80)

接下来，您需要生成数据集。为此，我们将使用一个单独的函数，该函数在合成晶格的基础上迭代参数。

def generate_and_save(n=300, save_dir="./beam_ds", seed=42):

    rng = np.random.default_rng(seed)
    os.makedirs(save_dir, exist_ok=True)

    r, delta, lamb = 3.0, 0.5, 1.0
    pos, N = get_circular_planar_positions(r, delta, lamb)

    az_plot = np.arange(-90, 90.001, 0.25)
    el_plot = np.arange(-90, 90.001, 0.25)

    file_paths = []

    for i in range(n):
        main_dir = (rng.uniform(-5, 5), rng.uniform(-3, 3))

        K = int(rng.integers(1, 4))
        interfs = []
        for _ in range(K):
            interfs.append((
                rng.uniform(8, 25),
                rng.uniform(8, 15)
            ))
        interfs_db = list(rng.uniform(-35, -25, size=K))

        shift = rng.uniform(-3, 3)
        az_bands = [(-20+shift, -10+shift), (10+shift, 20+shift)]
        el_bands = [(-20, -10), (10, 20)]
        exclude = set((float(a), float(e)) for a, e in interfs)

        side_pts = []
        for az_span in az_bands:
            for el_span in el_bands:
                side_pts += make_side_region(az_span, el_span, step=0.5, exclude=exclude)

        side_db = -17.0

        w = synthesize_mask_l2(
            pos, main_dir,
            null_dirs=interfs, null_db=interfs_db,
            side_dirs=side_pts, side_db=side_db
        )
        pat_db = array_response_fast(pos, w, az_plot, el_plot)


        out_path = os.path.join(save_dir, f"sample_{i:05d}.npz")
        np.savez_compressed(
            out_path,

            pos=pos.astype(np.float32),
            weights=w.astype(np.complex64),
            pattern_db=pat_db.astype(np.float32),
            r=np.float32(r), delta=np.float32(delta), wavelength=np.float32(lamb),
            main_dir=np.array(main_dir, dtype=np.float32),
            interfs=np.array(interfs, dtype=np.float32),
            interfs_db=np.array(interfs_db, dtype=np.float32),
            side_db=np.float32(side_db),
            az_plot=az_plot.astype(np.float32),
            el_plot=el_plot.astype(np.float32),
        )
        file_paths.append(out_path)

    return file_paths

paths = generate_and_save(n=1000, save_dir="./beam_ds_simple", seed=123)
print("Сохранено файлов:", len(paths))

Сохранено файлов: 1000

def visualize_samples(npz_files, db_floor=-80, title_prefix="Pattern"):

    for i, path in enumerate(npz_files):
        data = np.load(path, allow_pickle=True)
        pat_db = data["pattern_db"]
        az_plot = data["az_plot"]
        el_plot = data["el_plot"]

        plot_pattern_2d(
            az_plot, el_plot, pat_db,
            db_floor=db_floor,
            title=f"{title_prefix} #{i} ({path})"
        )

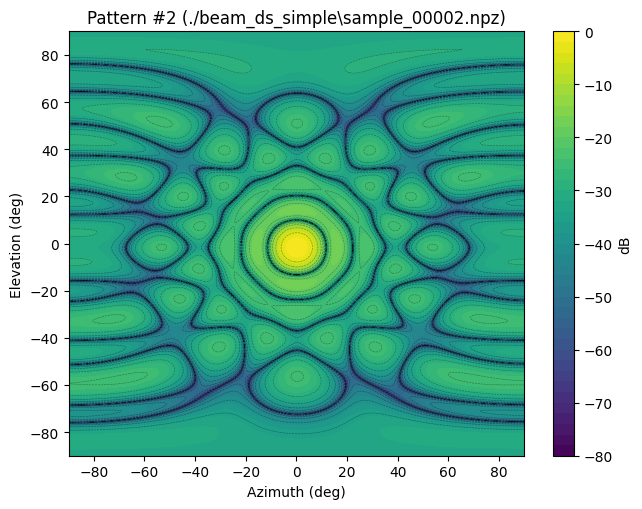

paths = generate_and_save(n=5, save_dir="./beam_ds_simple", seed=123)

visualize_samples(paths[:3], db_floor=-80)

人工智能网络模型

为了使用深度学习来合成模式，我们创建了一个卷积神经网络。在方位角和仰角的范围内定义辐射图案。因此，该图可以表示为我们的输入层接受为输入数据的图像。输出数据是形成这种图的权重。

class ResNet18Beamformer(nn.Module):
    def __init__(self, num_outputs, in_channels=1):
        super().__init__()
        self.model = models.resnet18(weights=None)
        if in_channels == 1:
            conv1 = self.model.conv1
            self.model.conv1 = nn.Conv2d(
                1, conv1.out_channels,
                kernel_size=conv1.kernel_size, stride=conv1.stride,
                padding=conv1.padding, bias=False
            )
        self.model.fc = nn.Linear(self.model.fc.in_features, num_outputs)

    def forward(self, x): return self.model(x)

我们将定义训练模型的设备，以及初始化模型本身。我们会立即将模型传输到GPU

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

model = ResNet18Beamformer(num_outputs=2*N, in_channels=1).to(device)

数据加载器

创建数据加载器

class RadarPatternNPZ(Dataset):
    def __init__(self, files, db_floor=DB_FLOOR, resize=IMAGE_SIZE):
        self.files = files
        self.db_floor = float(db_floor)
        self.resize = int(resize)

        self.transform = transforms.Compose([
            transforms.Resize((self.resize, self.resize), interpolation=Image.BILINEAR),
            transforms.ToTensor(),
            transforms.Normalize([0.5], [0.5]),
        ])

    def __len__(self): return len(self.files)

    def __getitem__(self, idx):
        path = self.files[idx]
        npz = np.load(path, allow_pickle=True)
        pat_db = npz["pattern_db"]
        img_u8 = db_to_uint8(pat_db, self.db_floor)
        img = Image.fromarray(img_u8, mode="L")
        x = self.transform(img)

        w = npz["weights"].astype(np.complex64)

        w = normalize_weights(w)
        y = np.stack([w.real, w.imag], axis=1).astype(np.float32).ravel()
        y = torch.from_numpy(y)
        return x, y, path

def make_loaders(root_dir=SAVE_DIR, batch_size=BATCH_SIZE, seed=SEED):
    files = sorted(glob.glob(os.path.join(root_dir, "sample_*.npz")))
    if not files: raise FileNotFoundError("Нет .npz в " + root_dir)
    gen = torch.Generator().manual_seed(seed)
    n = len(files)
    n_train = int(0.7 * n)
    n_val   = int(0.15 * n)
    n_test  = n - n_train - n_val
    idx_train, idx_val, idx_test = random_split(range(n), [n_train, n_val, n_test], generator=gen)
    train_ds = RadarPatternNPZ([files[i] for i in idx_train.indices])
    val_ds   = RadarPatternNPZ([files[i] for i in idx_val.indices])
    test_ds  = RadarPatternNPZ([files[i] for i in idx_test.indices])
    return (
        DataLoader(train_ds, batch_size=batch_size, shuffle=True,  num_workers=0),
        DataLoader(val_ds,   batch_size=batch_size, shuffle=False, num_workers=0),
        DataLoader(test_ds,  batch_size=batch_size, shuffle=False, num_workers=0),
        files
    )

网络训练和验证的一些辅助功能

让我们定义负责培训和验证的函数

def train_one(model, loader, criterion, optimizer, device, amp_dtype=None):
    model.train()
    run_loss, run_mae, n = 0.0, 0.0, 0
    for xb, yb, _ in loader:
        xb, yb = xb.to(device, non_blocking=True), yb.to(device, non_blocking=True)
        bs = xb.size(0)
        optimizer.zero_grad(set_to_none=True)
        with torch.autocast(device_type=device.type, dtype=amp_dtype) if amp_dtype else torch.cuda.amp.autocast(enabled=False):
            yp = model(xb)
            loss = criterion(yp, yb)
        loss.backward(); optimizer.step()
        run_loss += loss.item() * bs
        run_mae  += torch.mean(torch.abs(yp.detach() - yb)).item() * bs
        n += bs
    return run_loss/max(1,n), run_mae/max(1,n)

@torch.no_grad()
def evaluate(model, loader, criterion, device, amp_dtype=None):
    model.eval()
    run_loss, run_mae, n = 0.0, 0.0, 0
    for xb, yb, _ in loader:
        xb, yb = xb.to(device), yb.to(device)
        bs = xb.size(0)
        with torch.autocast(device_type=device.type, dtype=amp_dtype) if amp_dtype else torch.cuda.amp.autocast(enabled=False):
            yp = model(xb)
            loss = criterion(yp, yb)
        run_loss += loss.item() * bs
        run_mae  += torch.mean(torch.abs(yp - yb)).item() * bs
        n += bs
    return run_loss/max(1,n), run_mae/max(1,n)

def train_model(model, train_loader, val_loader, device, epochs=EPOCHS, lr=LR, wd=WEIGHT_DECAY):
    criterion = nn.MSELoss()
    optimizer = torch.optim.AdamW(model.parameters(), lr=lr, weight_decay=wd)
    amp_dtype = torch.bfloat16 if device.type == "cuda" else None

    best_wts = copy.deepcopy(model.state_dict())
    best_val = float("inf")
    for ep in range(1, epochs+1):
        tr_loss, tr_mae = train_one(model, train_loader, criterion, optimizer, device, amp_dtype)
        val_loss, val_mae = evaluate(model, val_loader, criterion, device, amp_dtype)
        if val_loss < best_val:
            best_val, best_wts = val_loss, copy.deepcopy(model.state_dict())
        print(f"Epoch {ep:02d}/{epochs} | train: loss {tr_loss:.5f}, mae {tr_mae:.5f} | val: loss {val_loss:.5f}, mae {val_mae:.5f}")
    model.load_state_dict(best_wts)
    return model

推理功能

@torch.no_grad()
def predict_weights(model, pat_db, device):
    # тот же препроцессинг, что и в датасете
    img_u8 = db_to_uint8(pat_db, DB_FLOOR)
    img = Image.fromarray(img_u8, mode="L")
    tfm = transforms.Compose([
        transforms.Resize((IMAGE_SIZE, IMAGE_SIZE), interpolation=Image.BILINEAR),
        transforms.ToTensor(),
        transforms.Normalize([0.5],[0.5]),
    ])
    x = tfm(img).unsqueeze(0).to(device)
    y = model(x).cpu().numpy().reshape(-1,2)
    w_pred = y[:,0] + 1j*y[:,1]
    w_pred = normalize_weights(w_pred)   # фикс неопределённостей
    return w_pred

模型训练

让我们将数据分为三组-训练，测试和验证

我们还将定义potel函数，一个网络训练的优化器，并运行训练周期本身。

train_loader, val_loader, test_loader, files = make_loaders(SAVE_DIR, BATCH_SIZE, SEED)
print(f"Train/Val/Test sizes: {len(train_loader.dataset)}/{len(val_loader.dataset)}/{len(test_loader.dataset)}")
    # 3) модель

criterion = nn.MSELoss()
optimizer = torch.optim.AdamW(model.parameters(), lr=LR, weight_decay=WEIGHT_DECAY)
amp_dtype = torch.bfloat16 if device.type == "cuda" else None

best_wts = copy.deepcopy(model.state_dict())
best_val = float("inf")
for ep in range(1, EPOCHS+1):
    tr_loss, tr_mae = train_one(model, train_loader, criterion, optimizer, device, amp_dtype)
    val_loss, val_mae = evaluate(model, val_loader, criterion, device, amp_dtype)
    if val_loss < best_val:
        best_val, best_wts = val_loss, copy.deepcopy(model.state_dict())
    print(f"Epoch {ep:02d}/{EPOCHS} | train: loss {tr_loss:.5f}, mae {tr_mae:.5f} | val: loss {val_loss:.5f}, mae {val_mae:.5f}")
model.load_state_dict(best_wts)
print(f"Train/Val/Test sizes: {len(train_loader.dataset)}/{len(val_loader.dataset)}/{len(test_loader.dataset)}")

测试训练好的模型

让我们对训练模型的测试集进行评估。

crit = nn.MSELoss()
val_loss, val_mae = evaluate(model, test_loader, crit, device)
print(f"Test  : loss {val_loss:.6f}, mae {val_mae:.6f}")

C:\Users\Alexandr\AppData\Local\Temp\ipykernel_11500\3085235658.py:24: FutureWarning: `torch.cuda.amp.autocast(args...)` is deprecated. Please use `torch.amp.autocast('cuda', args...)` instead.
  with torch.autocast(device_type=device.type, dtype=amp_dtype) if amp_dtype else torch.cuda.amp.autocast(enabled=False):

Test  : loss 0.000111, mae 0.008243

让我们在新生成的数据实例上测试模型。

interfs = [(12.0, 10.0), (13.0, 10.0)]
interfs_db = [-30.0, -30.0]
az_bands = [(-20, -10), (10, 20)]
el_bands = [(-20, -10), (10, 20)]
exclude = set(interfs)
side_pts = []
for az_span in az_bands:
    for el_span in el_bands:
        side_pts += make_side_region(az_span, el_span, step=0.5, exclude=exclude)
w_ref = synthesize_mask_l2(pos, (0.0,0.0), interfs, interfs_db, side_pts, -17.0)
w_ref = normalize_weights(w_ref)
pat_ref = array_response_fast(pos, w_ref, az_plot, el_plot)

w_pred_new = predict_weights(model, pat_ref, device)
pat_pred_new = array_response_fast(pos, w_pred_new, az_plot, el_plot)

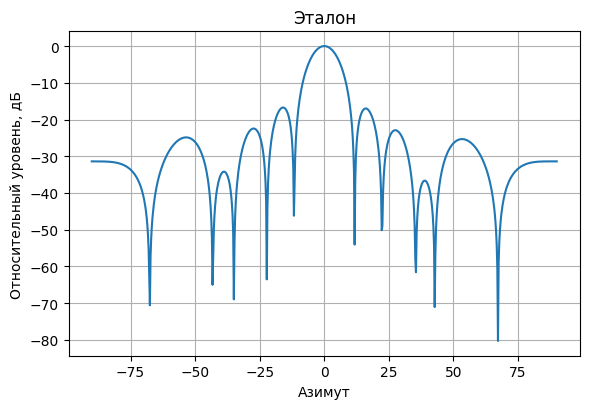

plot_pattern_cut(az_plot, el_plot, pat_ref, el0=0.0, title="Эталон")
plot_pattern_cut(az_plot, el_plot, pat_pred_new, el0=0.0, title="Предсказание")
plot_pattern_2d(az_plot, el_plot, pat_ref,      db_floor=-80, title='Эталон')

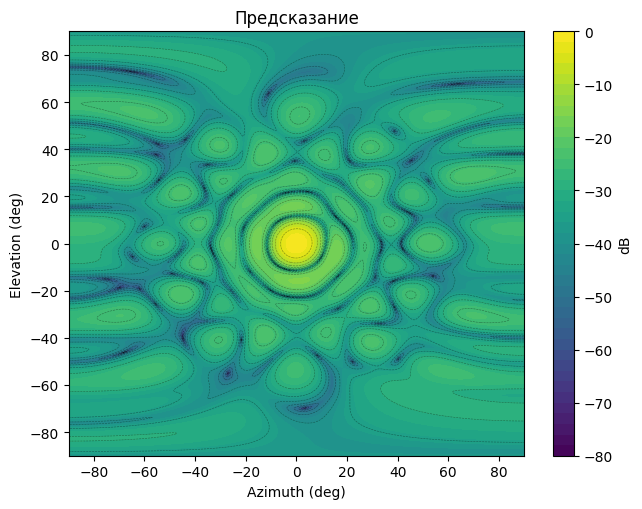

plot_pattern_2d(az_plot, el_plot, pat_pred_new, db_floor=-80, title='Предсказание')

一般来说，该模型在推理上提供了可接受的质量。

结论

此示例演示了如何生成方向模式并使用它们来训练用于预测权重的模型。
