本演示介绍如何使用Plots.jl
库中的函数mesh3d()
构建西拉多面体(Silahedron)。
Силаэдр- 是一个非凸环形多面体,欧拉-平卡列特性中的以下等式成立
$$h = \frac{(f-4)(f-3)}{12},$$
其中$f = 7$ 是多面体的面数,$h=1$ 是嵌入多面体的曲面的孔数。
这个等式源于这样一个条件,即在这样的多面体中,每个面都与其他面有一条公共边。
一个正六面体有 7 个六面体面、14 个顶点和 21 条边。在本例中,我们将利用现有的顶点坐标在直角坐标系中构建这个多面体。
首先,让我们介绍一下面和顶点的符号。顶点有 0 至 13 的连续数字符号,成对的面有连续的字母数字符号:A1、A2、B1、B2、B1、B2、B1、B2,未配对的边用字母G表示。

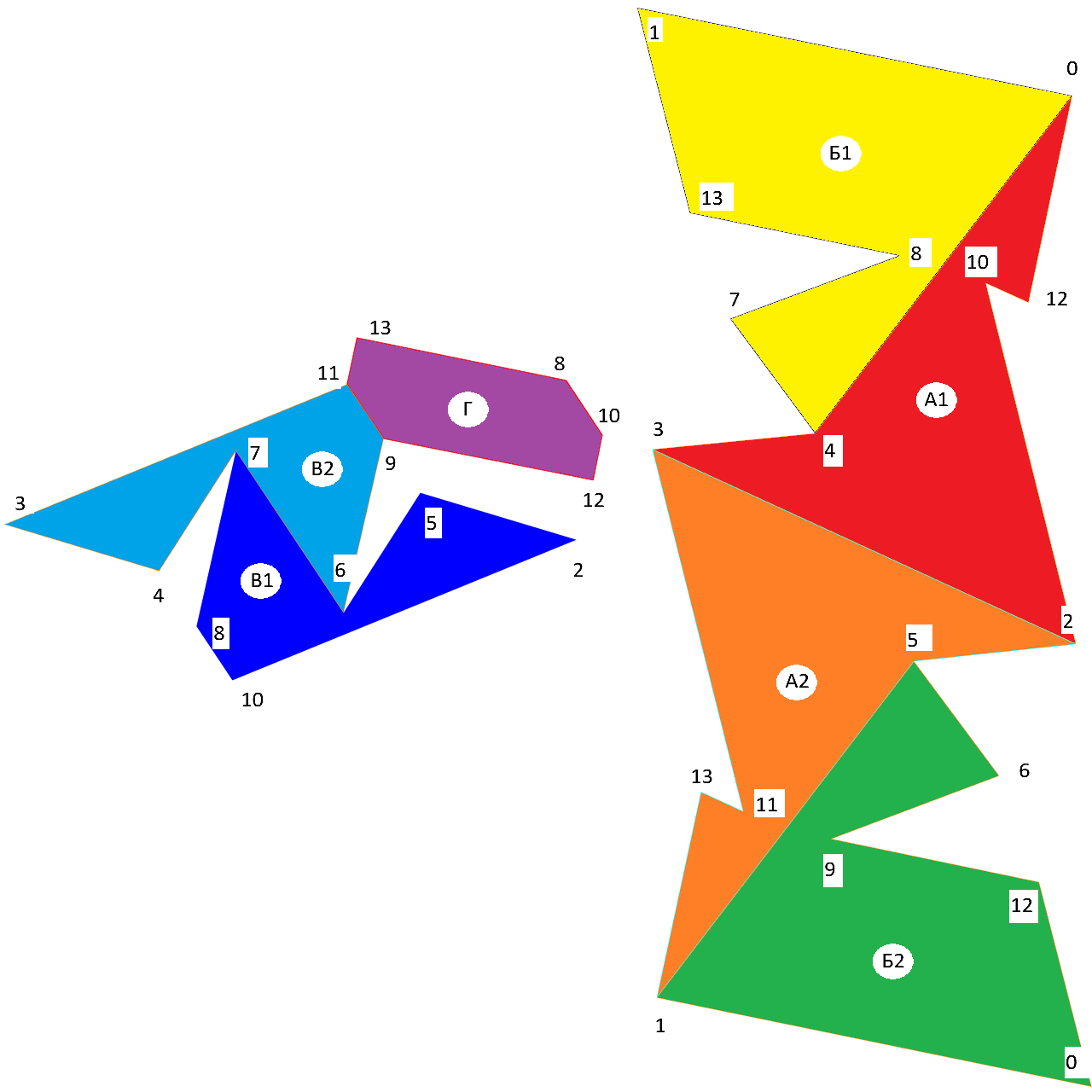

下面的多面体扫面图显示了相应的名称和色调,这些名称和色调将进一步用于构造正 silahedron。
让我们在Engee工作空间中添加描述正四面体顶点笛卡尔坐标的变量。这些坐标是根据多面体的几何中心位于原点和最小面的长度等于 1 的条件确定的。
在向量Вершины
中,给出了注释中指定序号的顶点坐标向量。为便于构建,沿坐标轴的坐标被提取为单独的矢量。
要使用Plots.mesh3d()
函数构造面,必须定义三个向量(I、J、K),其对应的索引是属于多面体面的三角形顶点。例如,在面 A1 中有 4 个不相交的三角形,分别由顶点 0-10-12、0-4-10、4-2-10 和 4-3-2构成。
因此,让我们将正方体的每个面划分为不相交的三角形,并将形成这些三角形的顶点写入向量 I、J、K 的相应索引中。为了在构建过程中正确显示面的颜色填充,应在不改变一个面的顶点遍历方向的情况下将三角形的顶点输入向量。
将获得的向量组合成图元传递给函数mesh3d()
,并定义调色板变量和多面体面的名称。
让我们来介绍函数Грань()
,它可以按索引构建顶点和面:

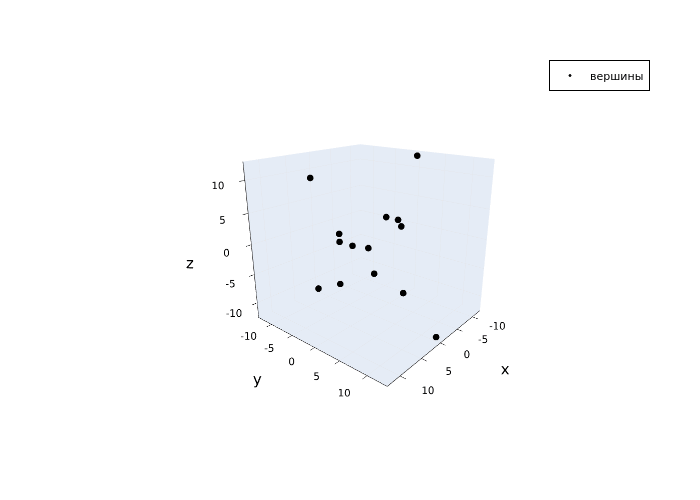

连接后端可构建具有高度交互性的多面体。正方体可以缩放、旋转,元素(面和顶点)的显示可以打开或关闭。
[ Info: Saved animation to /user/start/examples/math_and_optimization/silaedr/Силаэдр.gif
在本例中,我们使用Plots.jl
库中的函数mesh3d()
根据坐标构建了西拉多面体。
