型号参考¶
在本演示中,我们将使用一个简单的示例来说明如何在Engee中使用Model块。
模型引用本身就是使用 Model 块对另一个模型的引用。此类模型用于创建系统模型的层次结构。参考模型是子系统重用、单元测试、并行构建和大型系统的理想选择。
要实现我们的演示,我们需要两个模型:一个主模型和一个参考模型。

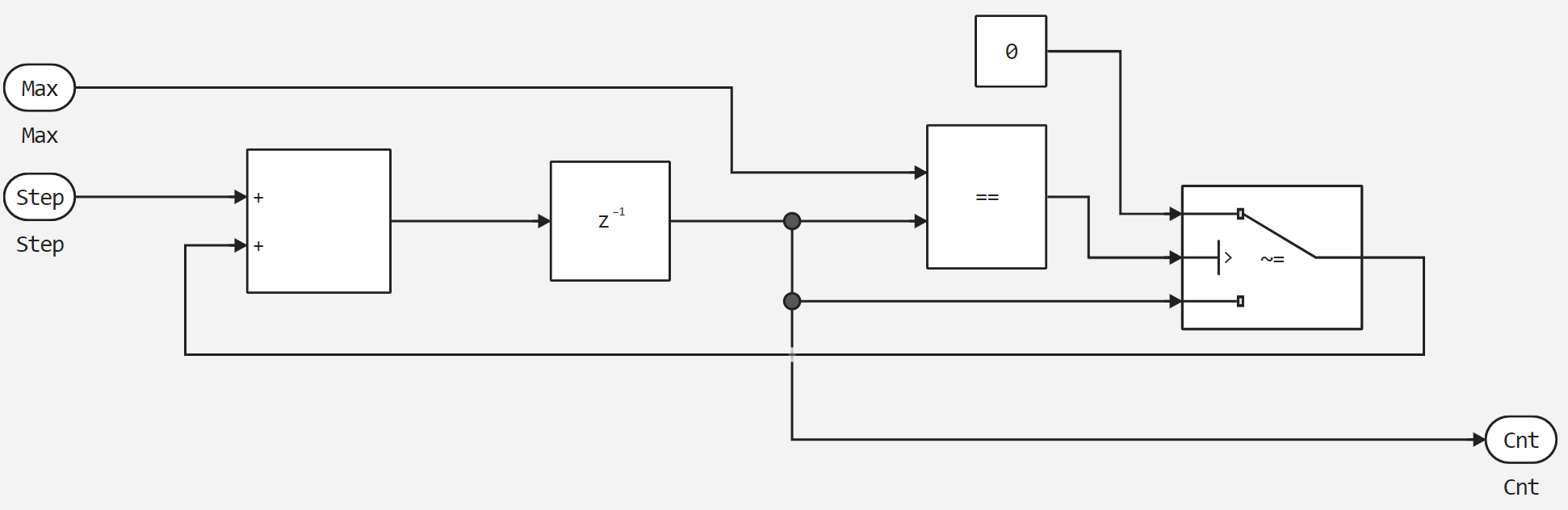

在我们的示例中,我们用简单的元素实现了一个带有两个输入端口的计数器,这两个输入端口分别定义了计数器的步进值和最大值。

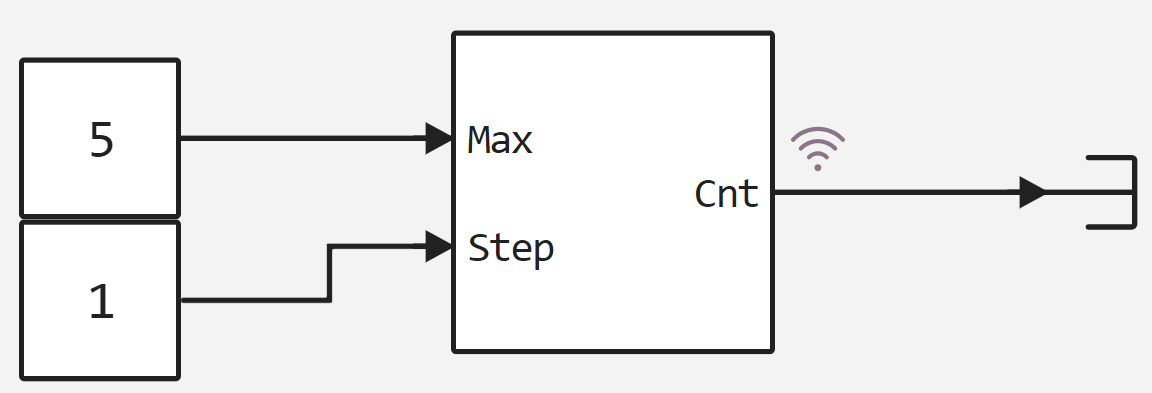

之后,我们就可以继续开发主模型,在主模型中,我们将使用 Model 块引用已实现的计数器。

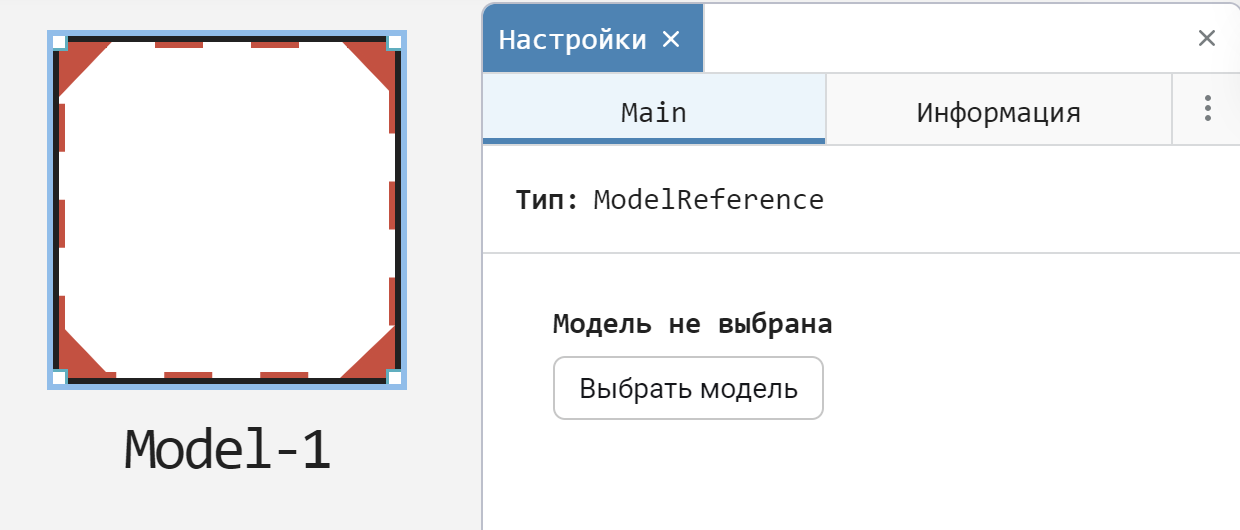

为了连接模型,我们将使用模型选择功能。

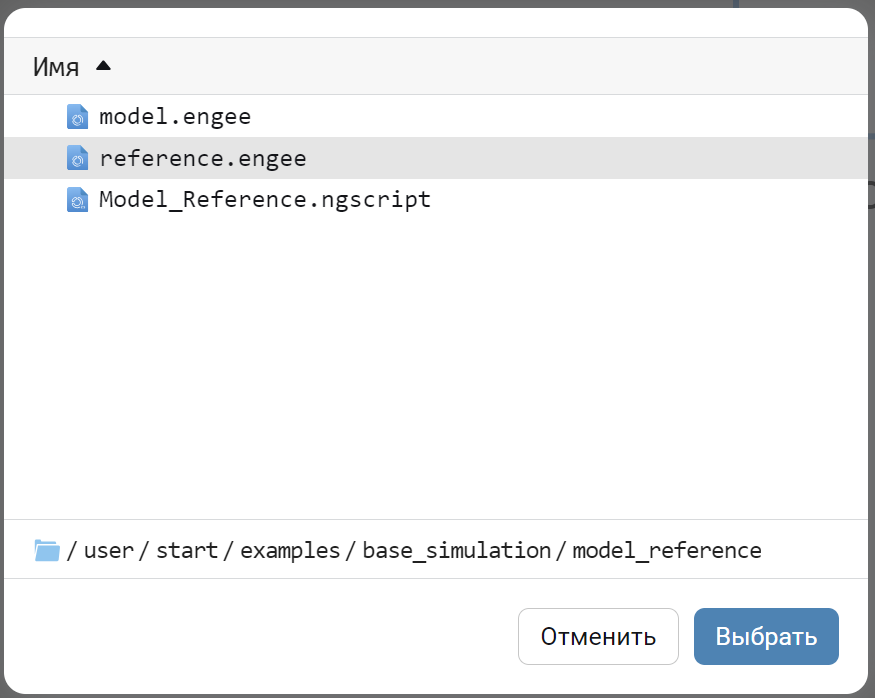

现在,在打开的文件管理器窗口中选择我们已经实现的计数器模型。

这样,我们就有了一个带有子系统的基本模型,并将其存储在一个单独的文件中。通过这种实现方式,我们可以在一个项目中多次重复使用这个计数器。同时,在更改了参考子系统中的逻辑后,我们将把这些更改应用到引用原始模型的所有模块中。

现在,让我们运行模型并分析计数器运行的正确性。
Out[0]:
run_model (generic function with 1 method)
Building...
Progress 100%
Progress 100%
Out[0]:
Dict{String, DataFrame} with 1 entry:
"Model.Cnt" => 11×2 DataFrame…
从上图可以看出,计数器确实以 1 为增量递增,计数器的最大值为 5。

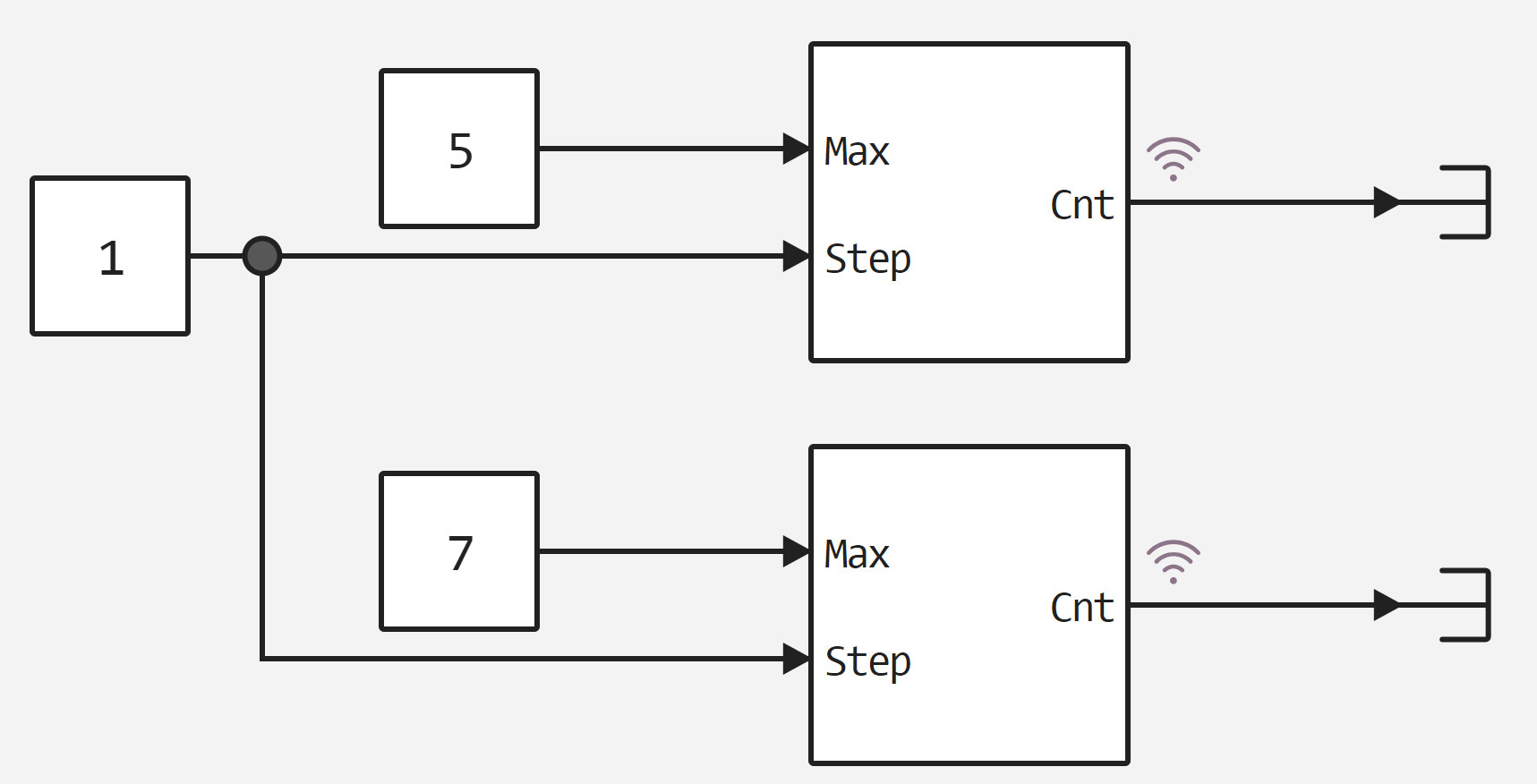

这样的计数器可以无限增加。下面的示例展示了一个有两个并行计数器的模型。

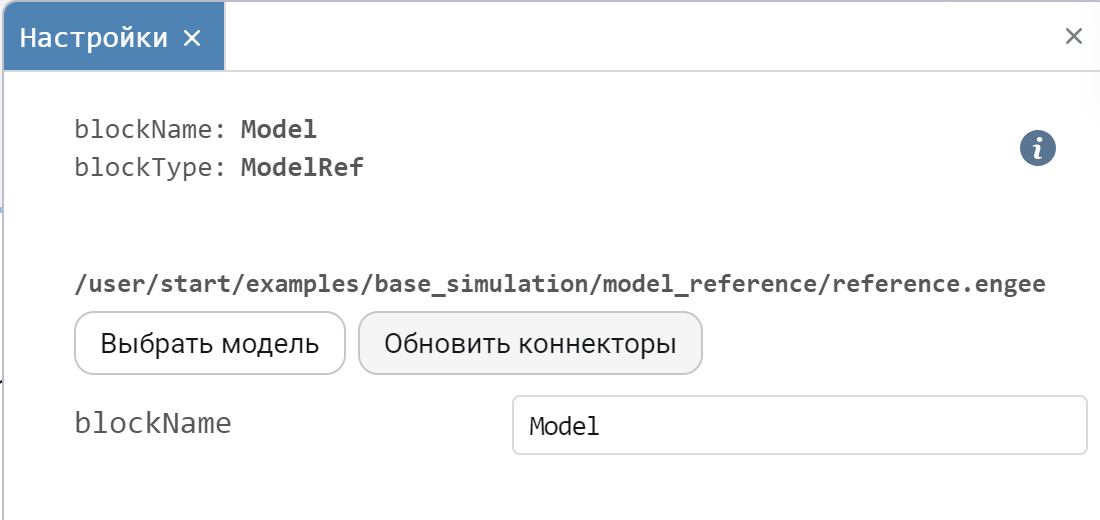

在这种情况下,当再次添加区块时,有必要更新连接器,以便与重复的子系统进行进一步的工作。

Building...
Progress 100%
Progress 100%
Out[0]:
Dict{String, DataFrame} with 2 entries:
"Model.Cnt" => 11×2 DataFrame…
"Model-1.Cnt" => 11×2 DataFrame…
我们可以看到,在这种情况下,两个计数器并行工作,且具有不同的最大值。
在本示例中,我们分析了使用模型参考的可能性,并展示了如何将其应用到项目中。这种系统设计方法大大简化了项目工作,也减少了在项目发生变化时编辑模块所花费的时间。
