<无翻译>*麦琪三联体,三联体*-Function
triplot(x, y; kwargs...)
triplot(positions; kwargs...)
triplot(triangles::Triangulation; kwargs...)根据提供的位置或 三角测量 来自DelaunayTriangulation。jl．
地块类型
绘图类型别名 三联体,三联体 功能是 三联体,三联体.
例子：
A 三联体,三联体 绘制由任意点集生成的三角形网格。 输入数据可以是基于点的（如 散点,散点 或 线条)或一个 三角测量 从https://github.com/DanielVandH/DelaunayTriangulation.jl[DelaunayTriangulation.jl]。
</无翻译>
using CairoMakie
using DelaunayTriangulation
using Random
Random.seed!(1234)
points = randn(Point2f, 50)
f, ax, tr = triplot(points, show_points = true, triangle_color = :lightblue)
tri = triangulate(points)
ax, tr = triplot(f[1, 2], tri, show_points = true)
f

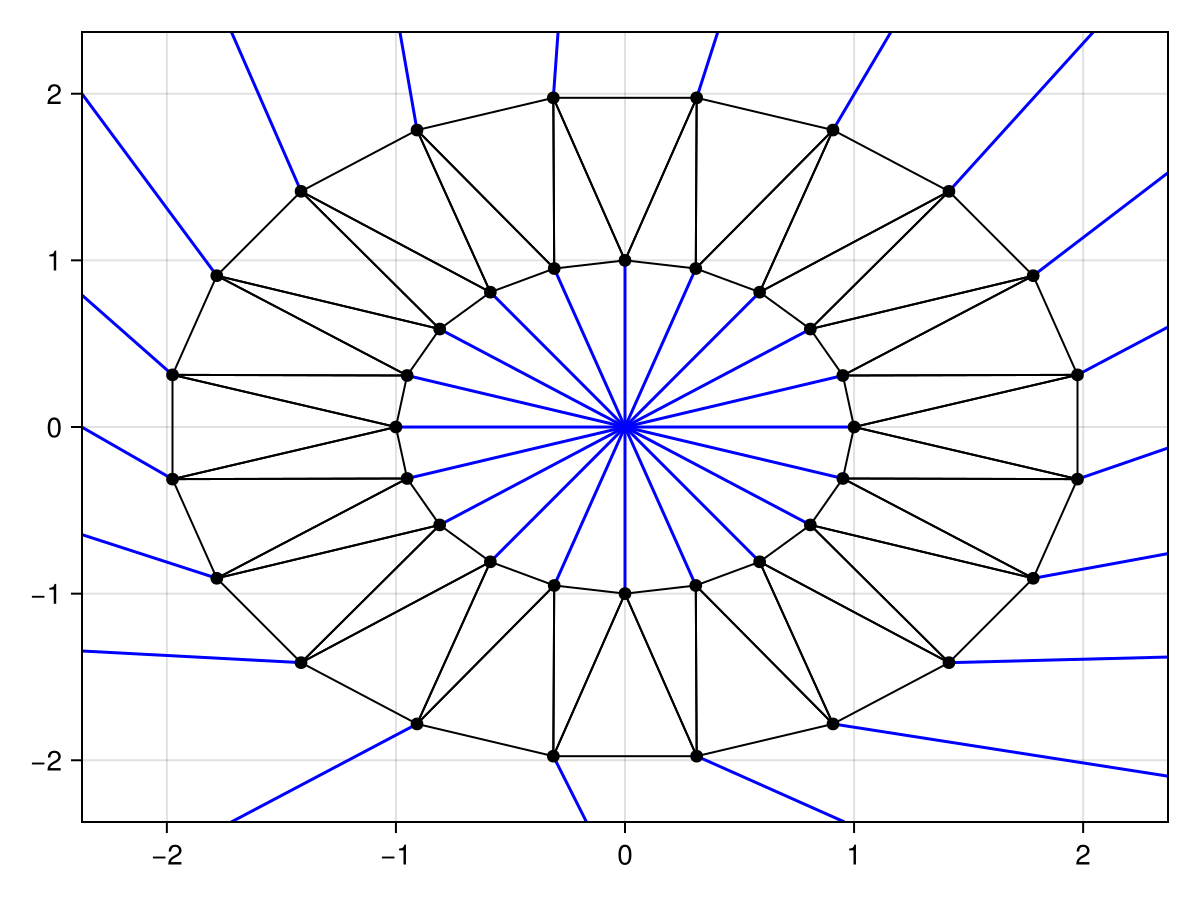

您可以使用 三联体,三联体 想象https://juliageometry.github.io/DelaunayTriangulation.jl/stable/manual/ghost_triangles/[幽灵边缘]包围边界。
</无翻译>
using CairoMakie
using DelaunayTriangulation
n = 20
angles = range(0, 2pi, length = n+1)[1:end-1]
x = [cos.(angles); 2 .* cos.(angles .+ pi/n)]
y = [sin.(angles); 2 .* sin.(angles .+ pi/n)]
inner = [n:-1:1; n] # clockwise inner
outer = [(n+1):(2n); n+1] # counter-clockwise outer
boundary_nodes = [[outer], [inner]]
points = [x'; y']
tri = triangulate(points; boundary_nodes = boundary_nodes)
f, ax, tr = triplot(tri; show_ghost_edges = true, show_points = true)
f
using CairoMakie
using DelaunayTriangulation
using Random
Random.seed!(1234)
outer = [
(0.0,0.0),(2.0,1.0),(4.0,0.0),
(6.0,2.0),(2.0,3.0),(3.0,4.0),
(6.0,6.0),(0.0,6.0),(0.0,0.0)
]
inner = [
(1.0,5.0),(2.0,4.0),(1.01,1.01),
(1.0,1.0),(0.99,1.01),(1.0,5.0)
]
boundary_points = [[outer], [inner]]
boundary_nodes, points = convert_boundary_points_to_indices(boundary_points)
tri = triangulate(points; boundary_nodes = boundary_nodes)
refine!(tri; max_area=1e-3*get_area(tri))
f, ax, tr = triplot(tri, show_constrained_edges = true, constrained_edge_linewidth = 4, show_convex_hull = true)
f
