View image differences

This demonstration shows a common example of comparing images by viewing the differences due to overlapping.

Here, the imshowpair function is used to rotate the image to change the image.

Pkg.add(["TestImages"])

using Images
using TestImages

# Загрузка тестового изображения
img = float.(testimage("cameraman"))

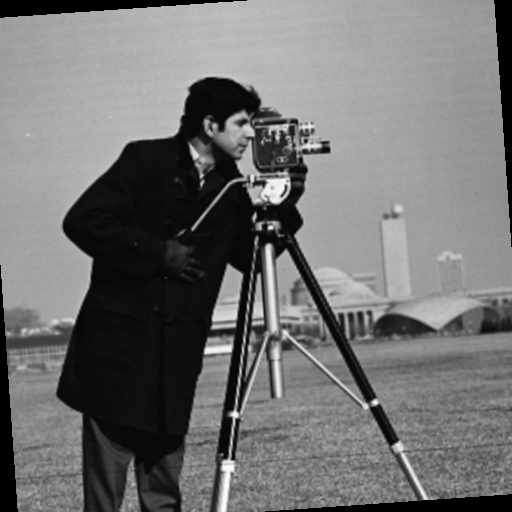

# поверните изображение на 4 градуса
img_r = imrotate(img, -pi/45, axes(img))

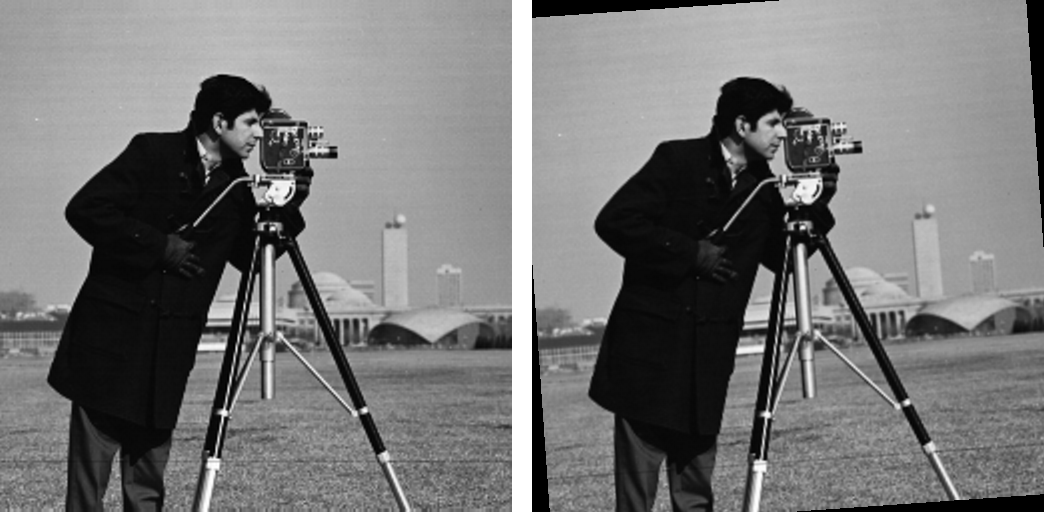

The mosaicview function allows you to display multiple images. This method is especially useful when images have different sizes and colours.

mosaicview(img, img_r; nrow=1, npad=20, fillvalue=colorant"white")

In some cases, when the differences between two images are relatively minor, a simple visual comparison may not give the desired result.

Grey images in such a case can be filled with different RGB channels, create an RGB representation and then converted to a greyscale image.

RGB_diffview = colorview(RGB, channelview(img), channelview(img_r), fill(0., size(img)))

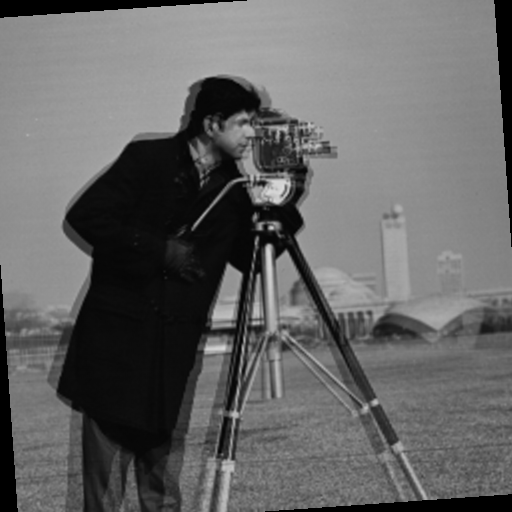

Gray_diffview = Gray.(RGB_diffview)

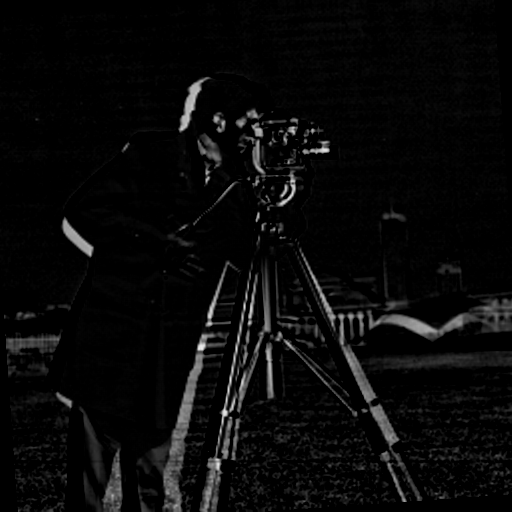

Also two images can be compared by calculating their difference.

plain_diffview = @. img - img_r

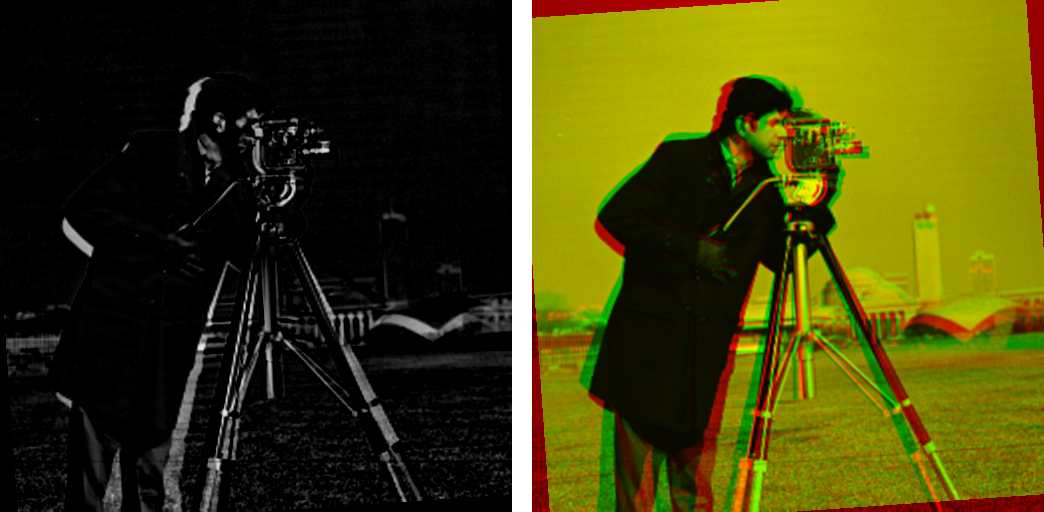

mosaicview(plain_diffview, RGB_diffview;
           nrow=1, npad=20, fillvalue=colorant"white")

Conclusion

We have explored several ways to visually compare both through algebraic operations and visual comparison. The figure above shows what these comparisons look like in a single output image.
