streamplot
|
The page is in the process of being translated. |
#
Makie.streamplot — Function
streamplot(f::function, xinterval, yinterval; color = norm, kwargs...)f must either accept f(::Point) or f(x::Number, y::Number). f must return a Point2.
Example:
v(x::Point2{T}) where T = Point2f(x[2], 4*x[1])
streamplot(v, -2..2, -2..2)Implementation
See the function Makie.streamplot_impl for implementation details.
Plot type
The plot type alias for the streamplot function is StreamPlot.
Examples
using CairoMakie
struct FitzhughNagumo{T}
ϵ::T
s::T
γ::T
β::T
end
P = FitzhughNagumo(0.1, 0.0, 1.5, 0.8)
f(x, P::FitzhughNagumo) = Point2f(
(x[1]-x[2]-x[1]^3+P.s)/P.ϵ,
P.γ*x[1]-x[2] + P.β
)
f(x) = f(x, P)

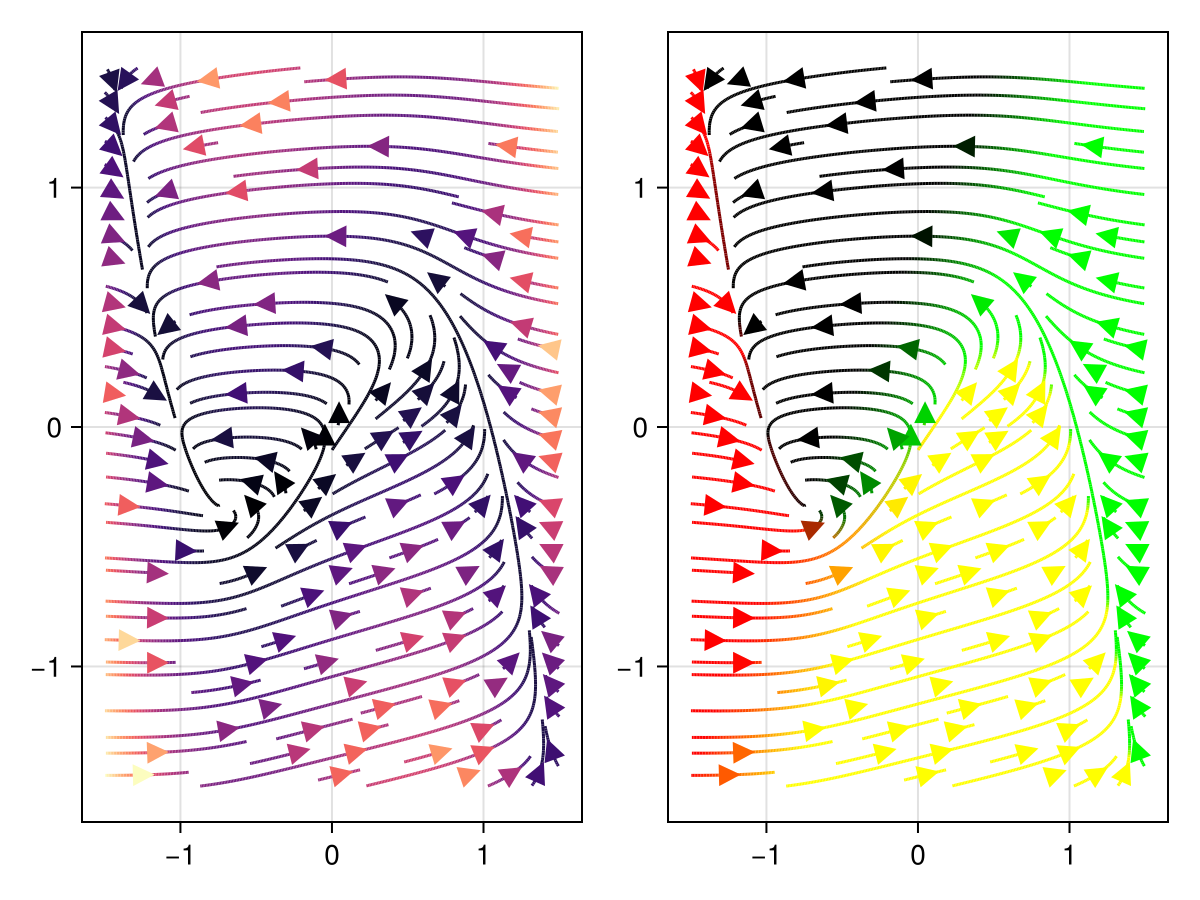

fig, ax, pl = streamplot(f, -1.5..1.5, -1.5..1.5, colormap = :magma)
# you can also pass a function to `color`, to either return a number or color value
streamplot(fig[1,2], f, -1.5 .. 1.5, -1.5 .. 1.5, color=(p)-> RGBAf(p..., 0.0, 1))
fig
Attributes
alpha
Defaults to 1.0
The alpha value of the colormap or color attribute. Multiple alphas like in plot(alpha=0.2, color=(:red, 0.5), will get multiplied.
clip_planes
Defaults to automatic
Clip planes offer a way to do clipping in 3D space. You can set a Vector of up to 8 Plane3f planes here, behind which plots will be clipped (i.e. become invisible). By default clip planes are inherited from the parent plot or scene. You can remove parent clip_planes by passing Plane3f[].
color
Defaults to norm
One can choose the color of the lines by passing a function color_func(dx::Point) to the color attribute. This can be set to any function or composition of functions. The dx which is passed to color_func is the output of f at the point being colored.
colormap
Defaults to @inherit colormap :viridis
Sets the colormap that is sampled for numeric colors. PlotUtils.cgrad(...), Makie.Reverse(any_colormap) can be used as well, or any symbol from ColorBrewer or PlotUtils. To see all available color gradients, you can call Makie.available_gradients().
colorscale
Defaults to identity
The color transform function. Can be any function, but only works well together with Colorbar for identity, log, log2, log10, sqrt, logit, Makie.pseudolog10 and Makie.Symlog10.
depth_shift
Defaults to 0.0
adjusts the depth value of a plot after all other transformations, i.e. in clip space, where 0 <= depth <= 1. This only applies to GLMakie and WGLMakie and can be used to adjust render order (like a tunable overdraw).
inspectable
Defaults to @inherit inspectable
Sets whether this plot should be seen by DataInspector. The default depends on the theme of the parent scene.
inspector_clear
Defaults to automatic
Sets a callback function (inspector, plot) -> ... for cleaning up custom indicators in DataInspector.
inspector_hover
Defaults to automatic
Sets a callback function (inspector, plot, index) -> ... which replaces the default show_data methods.
inspector_label
Defaults to automatic
Sets a callback function (plot, index, position) -> string which replaces the default label generated by DataInspector.
model
Defaults to automatic
Sets a model matrix for the plot. This overrides adjustments made with translate!, rotate! and scale!.
overdraw
Defaults to false
Controls if the plot will draw over other plots. This specifically means ignoring depth checks in GL backends
space
Defaults to :data
sets the transformation space for box encompassing the plot. See Makie.spaces() for possible inputs.
ssao
Defaults to false
Adjusts whether the plot is rendered with ssao (screen space ambient occlusion). Note that this only makes sense in 3D plots and is only applicable with fxaa = true.
