Building a model

Adding and connecting blocks

The mathematical model in Engee consists of blocks of various mathematical operations located on a work field and interconnected by connections.

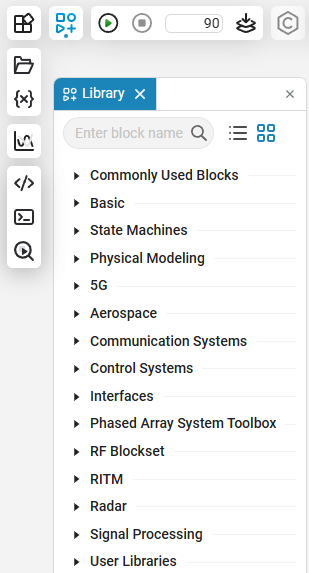

To go to the list of available blocks, click the icon Library.

img17 en

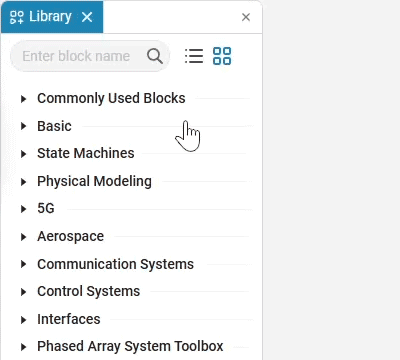

To add a block to the model, drag it from libraries block library icon to the work field using the left mouse button:

block adding 1 en

A mathematical model usually consists of a source block that generates data (for example, Sine Wave), a handler block (for example, Saturation) and the receiver unit (for example, Terminator).

To select several blocks, hold down Shift and the left mouse button, move the cursor to select the desired blocks.

vydelenie blokov

Connections between the output and input of the blocks are used to transfer data between the blocks. The arrow pointing out of the block indicates the data output (1) pointing into the input block (2).

in out

There are several ways to connect the blocks.:

  • Press and hold the left mouse button at the exit of one block, swipe the cursor to the entrance of the next block and release the mouse button.

  • Drag one block to another, and an interactive tooltip (light green line) will appear, which is not yet a link. Click with the left mouse button to turn it into a full-fledged connection.

    soedinenie blokov

  • click Ctrl+LKM using a ready-made connection to create branches:

    model branching

There can be more than one block of each type in the model. For example, you can add another handler block and a receiver block by connecting them to the existing blocks in the model.


Configuring Block parameters

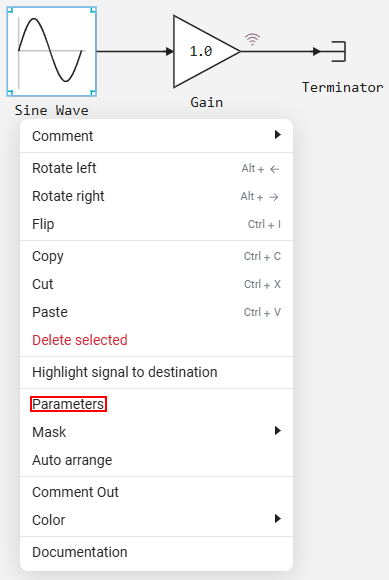

To go to the block settings, double-click on the desired block with the left mouse button, or left-click on the block and click Settings img10.

img20 en

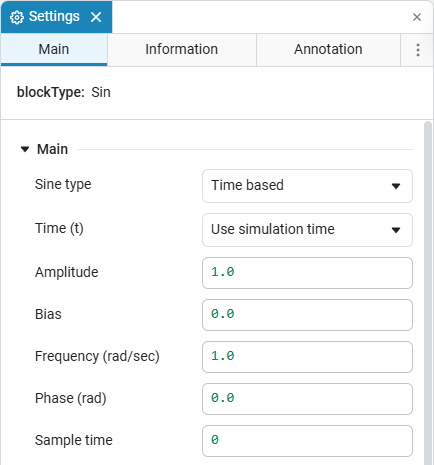

After that, the module window will open. Settings, in which you can set the block parameters by editing the corresponding fields and selecting items from the drop-down lists.

img21 en

You can run models with unconnected blocks and lines on the canvas.

rn 2024 vo 11

Parameters as expressions

The block parameters can be configured using expressions. To do this, in script editor interactive script icon or command line img 41 1 2 define the variable that the expression will be based on. For example:

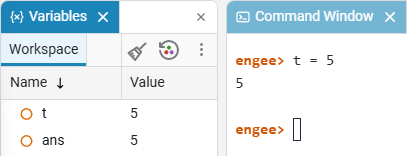

  • On the command line, assign the value 5 to the variable t:

    build a model params en

    The variables window will display all created variables and their values.

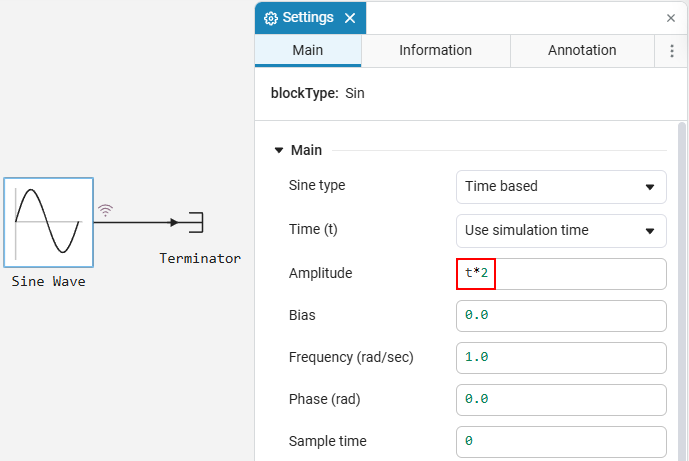

  • In the block settings, select the desired parameter and enter an expression with the previously specified variable.:

    build a model params 1 en

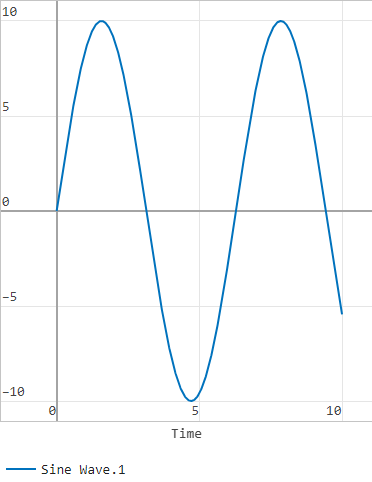

  • In the visualization window, look at the simulation results.:

    build a model params 2 en

Creating a hierarchy of a model using subsystems

For the convenience of visualizing a mathematical model, you can use the block Subsystem. This is necessary in cases where the number of blocks in the model is so large that it becomes inconvenient to work with them.


img21a

To add a subsystem, you can:

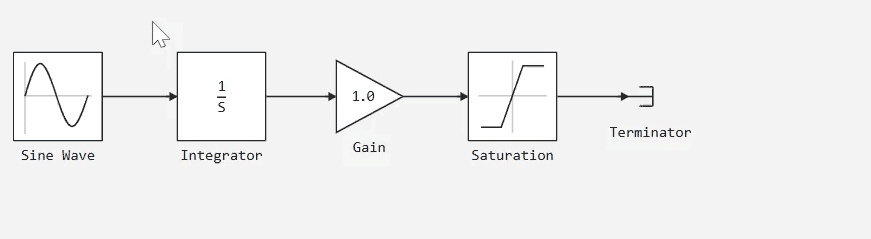

  • select the blocks that you want to add to the subsystem, click the ellipsis and then on the icon subsystem icon 1 1 Subsystem;

    subsystem creation

  • add a block Subsystem from the block library, double-click on it with the left mouse button (this will enter the subsystem) and add the necessary blocks in the standard way.

Within one subsystem, you can create an unlimited number of other subsystems at different levels of nesting. As a result, the model has a hierarchy. To navigate through different levels of the model, use the Navigation Bar.

model hierarchy 3 1

Disabling and skipping blocks

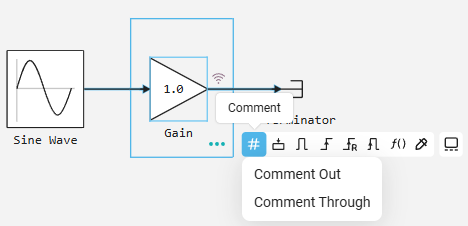

You can disable or skip workspace blocks Engee:

  • Comment Out — the function is the same as if the block did not exist in the model. This means that the block is disabled and its presence does not affect the behavior of the model.:

    comment out 1 en

  • Comment Through — The function is similar to the fact that the inputs of the unit are directly connected to its outputs. This means that the block is skipped and the data passes through it unchanged. This is equivalent to connecting all the inputs of the block directly to the corresponding outputs of the block.:

    comment through 1 en

Features of disabling and skipping blocks Engee:

  • You can’t disable library blocks. Physical Modeling;

  • You can’t disconnect or skip connections.;

  • Blocks with different numbers of inputs/outputs should not be skipped.;

  • You cannot disable the input and output ports.

Bookmarks in models

Bookmarks allow you to quickly navigate between different models and levels of nesting. To add a bookmark, click on the icon Make screenshot icon screenshot 1 and select a section Bookmarks. There are two options available in this bookmarks section:

  • Add a bookmark — the system saves the current position in the model. After that, a screenshot of the bookmark will appear in the lower right corner, where you can change its name or delete it.:

    bookmark 1

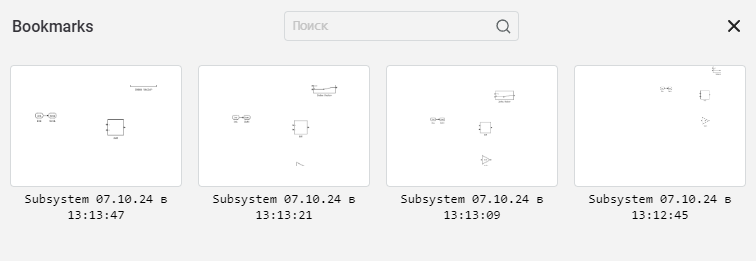

  • Open List — displays all saved bookmarks that can be used for navigation. You can also rename or delete bookmarks in the list.:

    bookmark 2 en

To go to a bookmark, select the one you want from the list and double-click on it with the left mouse button. If necessary, use a name search.
