AGC model using Engee Function

AGC (Automatic Gain Control) is a method of controlling the signal strength in communication systems. is a signal level control technique in communication systems whose main purpose is to maintain a stable level of the output signal as the amplitude of the input signal changes.

Examples of AGC applications

1. In radios, it helps to stabilise the volume of the sound regardless of the strength of the received signal.
2. In audio systems, it maintains a constant recording level even with sudden changes in the volume of the audio source.

Thus, AGC provides comfortable and high quality signal reception/playback in various conditions. reception/playback of signals in various conditions. The model we have realised is presented below.

The model has an Engee Function block, which implements the algorim for calculating the gain in this function. The envelope variable is an analogue of MATLAB constant variable ( persistent ). It is local for the function in which it is created, but at the same time it is not reset at each step of the calculations, but stores the previous value in itself, i.e. they are stored in memory between function calls. in memory between function calls.

Let's take a closer look at the implementation of this function.

1. Block structure

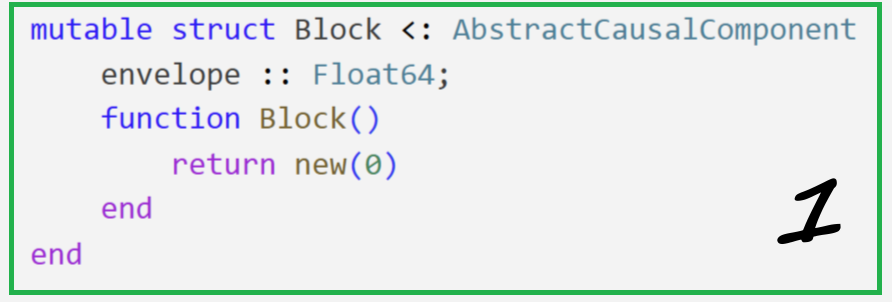

Block is a structure that inherits from AbstractCausalComponent. It contains a field envelope of type Float64, which is used to store the envelope value of the signal. The Block() constructor itself initialises a new Block object with the initial envelope value equal to 0.

2. Call function

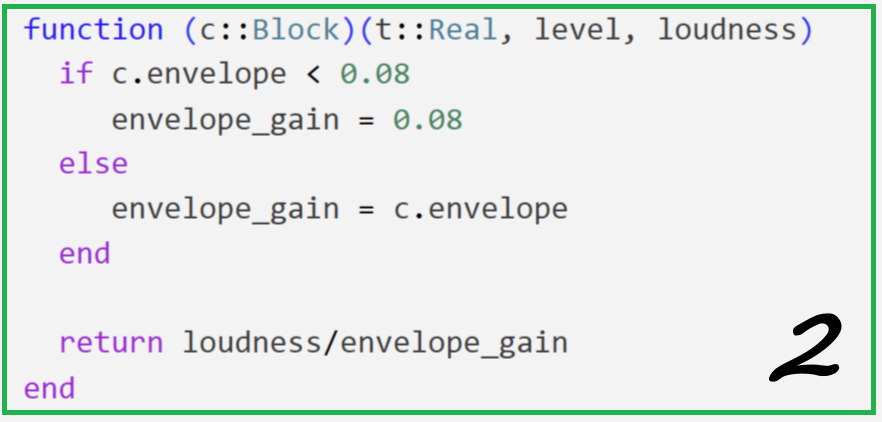

This is the main function of our algorithm. It takes three arguments: t (time), level and loudness.

If the envelope value is less than 0.08, envelope_gain is set to 0.08. Otherwise, the current envelope value is used.

The function returns the loudness value divided by envelope_gain, which is the final value of the gain gain at a particular calculation step.

3. Function update!

This function updates the envelope value in the object Block. It calculates the difference between level and the current envelope value. If the difference is positive, envelope is increased by 80% of this difference. difference. Otherwise, it decreases by 1% of this difference. As a result the function returns an updated Block object, which allows us to store and redefine it. us to store and redefine this value at each of the calculation steps.

Now that we have decided how to organise the model, let's move on to running it and analysing the results.
