Application of software model management

This example demonstrates one of the model management tools - software management.

Software management allows you to create, run, and save models, as well as change their parameters in the script editor using special commands.

In [ ]:
cd( @__DIR__ ) # Переместимся в каталог, где лежит текущий скрипт
homePath = string(@__DIR__)
Out[0]:
"/user/start/examples/base_simulation/command_control"

Creating and saving a model

In [ ]:
# Для повторного запуска команды create
if "model" in [m.name for m in engee.get_all_models()]
    engee.close("model", force=true)
end
Out[0]:
Model(
	name: newmodel_1
	id: 44f96846-5a38-40ef-bb8a-53aed569e391
)

Creating a model:

In [ ]:
engee.create("model")
Out[0]:
Model(
	name: model
	id: b1ef1997-a2a6-4c65-8f4d-8c251ab2e2c0
)

Viewing the name of an open model is performed by the function:

    engee.get_current_model()::Model
    engee.gcm()::Model
In [ ]:
m = engee.gcm()
Out[0]:
Model(
	name: model
	id: b1ef1997-a2a6-4c65-8f4d-8c251ab2e2c0
)
Saving the model using the function save():
In [ ]:
engee.save( "model", "$homePath/model.engee"; force=true )
Out[0]:
Model(
	name: model
	id: b1ef1997-a2a6-4c65-8f4d-8c251ab2e2c0
)

The model was saved using the specified path.:


You can view the list of open models using the function get_all_models():

In [ ]:
engee.get_all_models()
Out[0]:
3-element Vector{Engee.Types.Model}:
 Model(
	name: model
	id: b1ef1997-a2a6-4c65-8f4d-8c251ab2e2c0
)

 Model(
	name: newmodel_1
	id: 44f96846-5a38-40ef-bb8a-53aed569e391
)

 Model(
	name: program_control_model
	id: b27bcfc6-48bb-4546-b400-dc7fa3e7c3ad
)

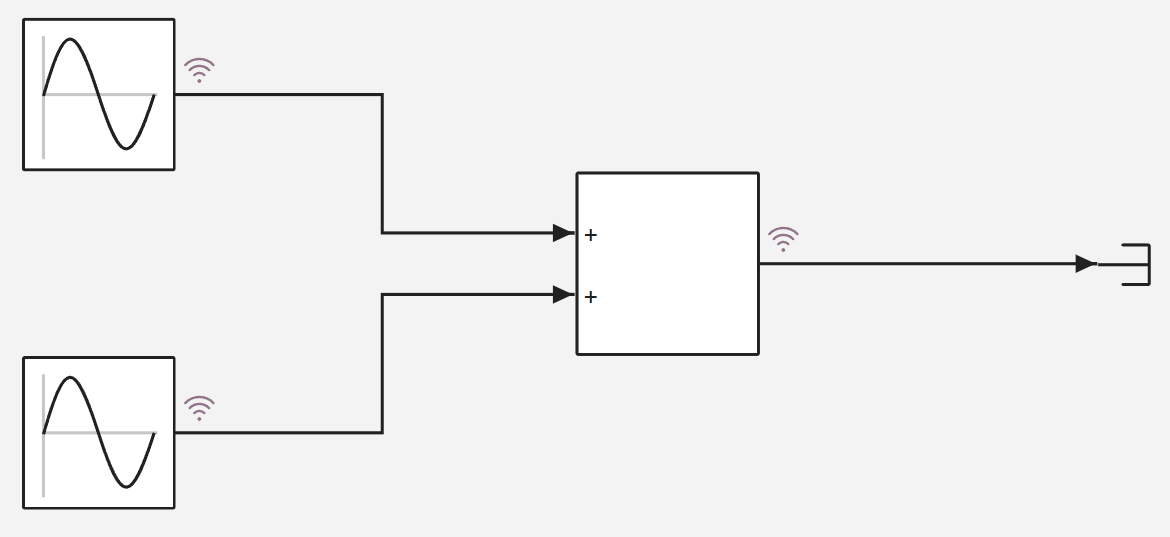

Loading the model and changing the simulation parameters


If the model is not yet open in the editor, then we load the model using the function load(). If it is already open, then you need to use the function open(). Then we get the simulation parameters using the command get_param():

In [ ]:
if "program_control_model" in [m.name for m in engee.get_all_models()]
    m = engee.open( "program_control_model" ) # загрузка модели
else
    m = engee.load( "$homePath/program_control_model.engee" ) # если модель уже открыта, выполните эту строчку
end

m_param = engee.get_param( "program_control_model" ) # получение параметров моделирования
Out[0]:
ModelParameters(
  :EnableMultiTasking => false
  :GenerateComments => true

  #Параметры интегратора:
  :StartTime => 0.0
  :StopTime => 10
  :SolverName => Tsit5
  :SolverType => variable-step
  :MaxStep => auto
  :MinStep => auto
  :InitialStep => auto
  :RelTol => auto
  :AbsTol => auto
  :OutputOption => true
  :OutputTimes => 1e-2
)

The simulation parameters can be changed using the function set_param!():

In [ ]:
engee.set_param!("program_control_model", "SolverName" => "Tsit5", "SolverType" => "variable-step") #= меняем постоянный шаг решателя
                                                                  на переменный и изменяем сам решатель =#
engee.get_param("program_control_model") # выводим параметры с внесёнными изменениями
Out[0]:
ModelParameters(
  :EnableMultiTasking => false
  :GenerateComments => true

  #Параметры интегратора:
  :StartTime => 0.0
  :StopTime => 10
  :SolverName => Tsit5
  :SolverType => variable-step
  :MaxStep => auto
  :MinStep => auto
  :InitialStep => auto
  :RelTol => auto
  :AbsTol => auto
  :OutputOption => true
  :OutputTimes => 1e-2
)
In [ ]:
engee.set_param!("program_control_model", "MinStep" => "auto", "MaxStep" => "auto") #= меняем постоянный шаг решателя
                                                                  на переменный и изменяем сам решатель =#
engee.get_param("program_control_model") # выводим параметры с внесёнными изменениями
Out[0]:
ModelParameters(
  :EnableMultiTasking => false
  :GenerateComments => true

  #Параметры интегратора:
  :StartTime => 0.0
  :StopTime => 10
  :SolverName => Tsit5
  :SolverType => variable-step
  :MaxStep => auto
  :MinStep => auto
  :InitialStep => auto
  :RelTol => auto
  :AbsTol => auto
  :OutputOption => true
  :OutputTimes => 1e-2
)

Running the simulation

    run([m::Model]; verbose=false)

Starts the execution of the model. If no model is specified, it starts a simulation of the current model. If the model is not open, a NoModelOpenedException is thrown.

Arguments:

  • verbose: whether to print progress, by default verbose=false.

  • m::Model: the default model for which the operation is performed is the current model.

    Example:

      engee> m = engee.load("start/examples/powersystems/models/power_line_apv.engee")
      engee> engee.run(m)
      Dict{String, DataFrame} with 6 entries:
         "Va" => 40001×2 DataFrame…
         "Ia" => 40001×2 DataFrame…
         "Ib" => 40001×2 DataFrame…
         "Ic" => 40001×2 DataFrame…
         "Vc" => 40001×2 DataFrame…
         "Vb" => 40001×2 DataFrame…

Running the model with simulation progress output:

In [ ]:
engee.run(m, verbose=true)

Building...
Progress 100%
Out[0]:
Dict{String, DataFrames.DataFrame} with 3 entries:
  "Add.1"         => 1001×2 DataFrame…
  "Sine Wave-1.1" => 1001×2 DataFrame…
  "Sine Wave.1"   => 1001×2 DataFrame…

Viewing simulation results

The simulation results can be obtained using the function get_results():

    engee.get_results(model_name::String)
    engee.get_results(model::Model)
    engee.get_results()

Returns the results of the last simulation of the model as a dictionary Dict{String, DataFrame}, where the key is the name of the monitored port.

If the model is not open, an exception is thrown. NoModelOpenedException.

If the simulation is not running, an exception is thrown. ModelIsNotRunningException.

Arguments:

  • m::Model: the default model for which the operation is performed is the current model.

    Example:

      engee> m = engee.load("start/examples/powersystems/models/power_line_apv.engee")
      engee> results1 = engee.run(m);
      engee> results2 = engee.get_results(m)
      Dict{String, DataFrame} with 6 entries:
        "Va" => 40001×2 DataFrame…
        "Ia" => 40001×2 DataFrame…
        "Ib" => 40001×2 DataFrame…
        "Ic" => 40001×2 DataFrame…
        "Vc" => 40001×2 DataFrame…
        "Vb" => 40001×2 DataFrame…
      engee> results1 == results2
      true

Displaying the results obtained during the simulation:

In [ ]:
results = engee.get_results( "program_control_model" )
Out[0]:
Dict{String, DataFrames.DataFrame} with 3 entries:
  "Add.1"         => 1001×2 DataFrame…
  "Sine Wave-1.1" => 1001×2 DataFrame…
  "Sine Wave.1"   => 1001×2 DataFrame…

Recording simulation results into variables and displaying a summary table with the results:

In [ ]:
sin1 = engee.get_results("program_control_model")["Sine Wave.1"]
sin2 = engee.get_results("program_control_model")["Sine Wave-1.1"]
sum_signal = engee.get_results("program_control_model")["Add.1"]
table = hcat(hcat(sin1, sin2[:,2], makeunique=true), sum_signal[:,2], makeunique=true) # используя сложение массивов по горизонтали (hcat()), составляем таблицу
first(table, 10) # выводим первые 10 значений получившейся таблицы
Out[0]:

10 rows × 4 columns

timevaluex1x1_1
Float64Float64Float64Float64
10.00.00.8414710.841471
20.010.009999830.8468320.856832
30.020.01999870.8521080.872107
40.030.02999550.8572990.887294
50.040.03998930.8624040.902394
60.050.04997920.8674230.917402
70.060.0599640.8723550.932319
80.070.06994280.8772010.947143
90.080.07991470.8819580.961873
100.090.08987850.8866270.976505

We plot the changes in the values obtained as a result of the simulation.:

In [ ]:
using Plots
plot(table[:,1], table[:,2])
plot!(table[:,1], table[:,3])
plot!(table[:,1], table[:,4])
Out[0]:

Conclusion:

In this example, we demonstrated the use of software model control to run a simulation from a script.

During the execution of the code, a new model was created and saved, the finished model was loaded, the simulation parameters were changed, and also, using the graphical library, the simulation results were displayed and transformed into a convenient form.
